Hebei CBIES Automotive Parts Co., Ltd. is one of the reliable manufacturers and suppliers in China. As a specialized factory, we focus on manufacturing hc340la ccb tube with consistent quality, competitive pricing, and reliable supply for global markets.
Cbies Automotive is committed to creating more energy-saving, safe and lightweight products.
Minimize the weight of the product while meeting the strength requirements and NVH test requirements, improve the natural frequency of the steering wheel and reduce the idle jitter.
Cbies HC340LA steel has good welding performance and enough strength and stamping performance, it is widely used in automobile a-pillar upper strengthening parts, inner B-pillar, vehicle threshold extension parts, left and right rail outer plate, car cross beam and chassis seat parts and other fields, and has broad development prospects.
Dimension Range
Material: Carbon Steel
Grade: HC340LA
Circular: 35-60 mm
Wall thickness: 1.5-3.0 mm
Length: 5800 mm
Other sizes and lengths are available upon request.
HC340LA Profile
HC340LA is a cold-rolled, low alloy and high strength steel. As Nb-Ti micro-alloyed cold rolled sheet for high strength stamping, it is mainly used in low carbon steel. In addition to Si and Mn solution strengthening, Nb, Ti, V and other microalloying elements are added to form carbides and nitride particles with C and N elements, which are precipitated and strengthened on ferrite matrix by single or compound addition, then achieving higher strength. It is one of the preferred materials for structural parts and reinforcement parts.
Meet the requirements of different CCB tubes
According to the layout, the central pipe structure can be designed into different types: straight pipe, bend pipe and multiple steel pipe welded products.
CBIES AUTOMOTIVE can meet the deformation processing requirements of steel pipes.

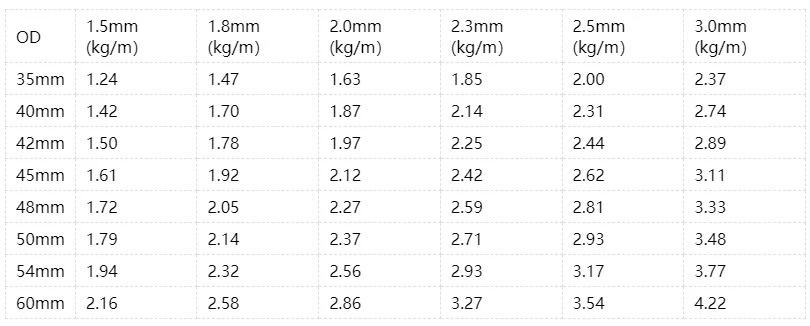

Specifications and Unit Weight
Mechanical properties
Grade | Tensile Strength RP0.2 (MPa) | Yield Strength Rm (MPa) | Elongation A (min %) |
HC340LA | 410-510 | 340-420 | 21 |

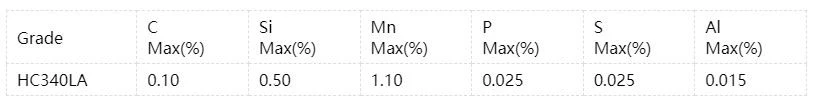

Chemical Components
Tolerance
Characteristic | Circular precision tubes |
Outside diameter (D) | |
35 ≤ D < 40 60 ≤ D < 70 | ±0.15mm ±0.23 mm |
Out-of-roundness | The diameter tolerances include the out-of-roundness |
Thickness (T) | T≤ 2.0mm: ±0.15 mm |
Straightness | Maximum 0.1% of measured length |
Height of internal weld bead, g; | |
Bead removed | g ≤ 0.3 mm |
Mill length | 0/+50 mm, standard length 6000 mm |
Exact length, single cutting | ±0.5 mm |

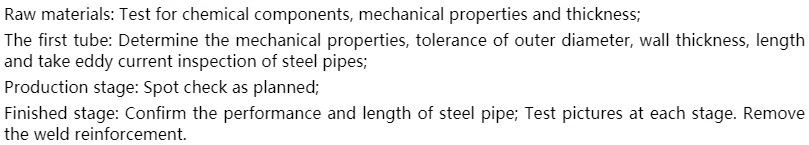

Quality Control

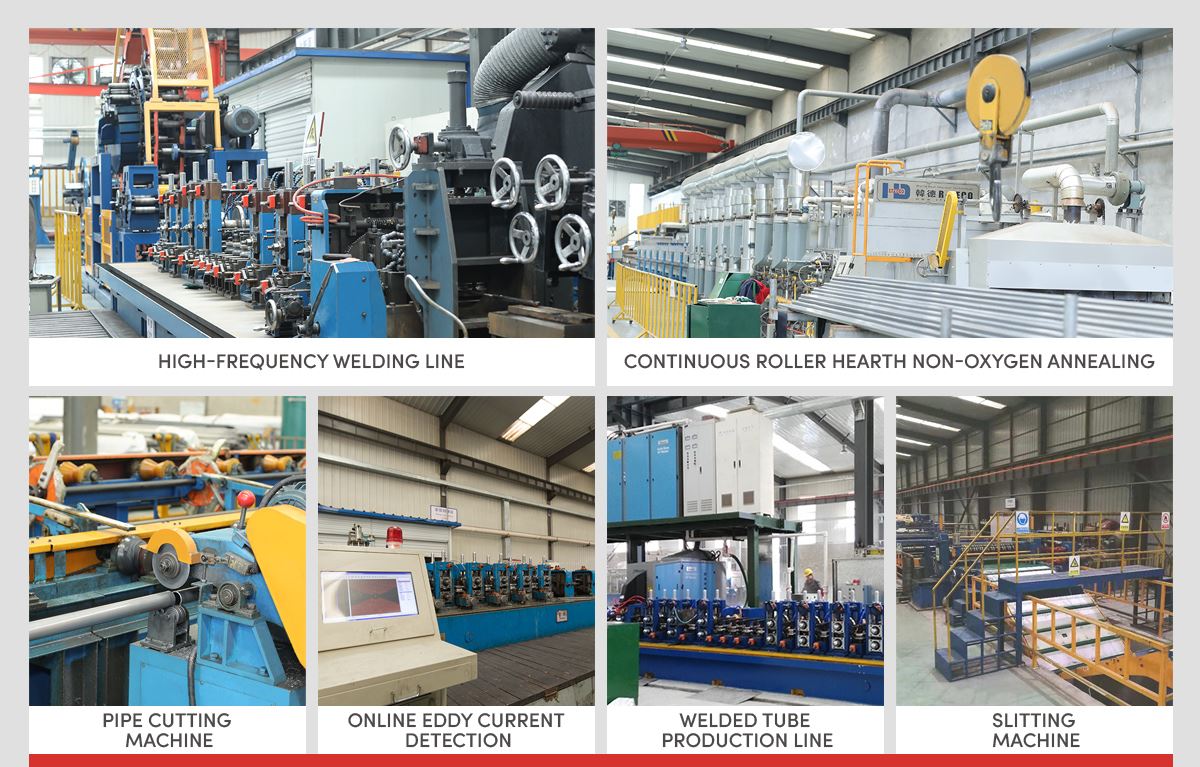

Production Equipment

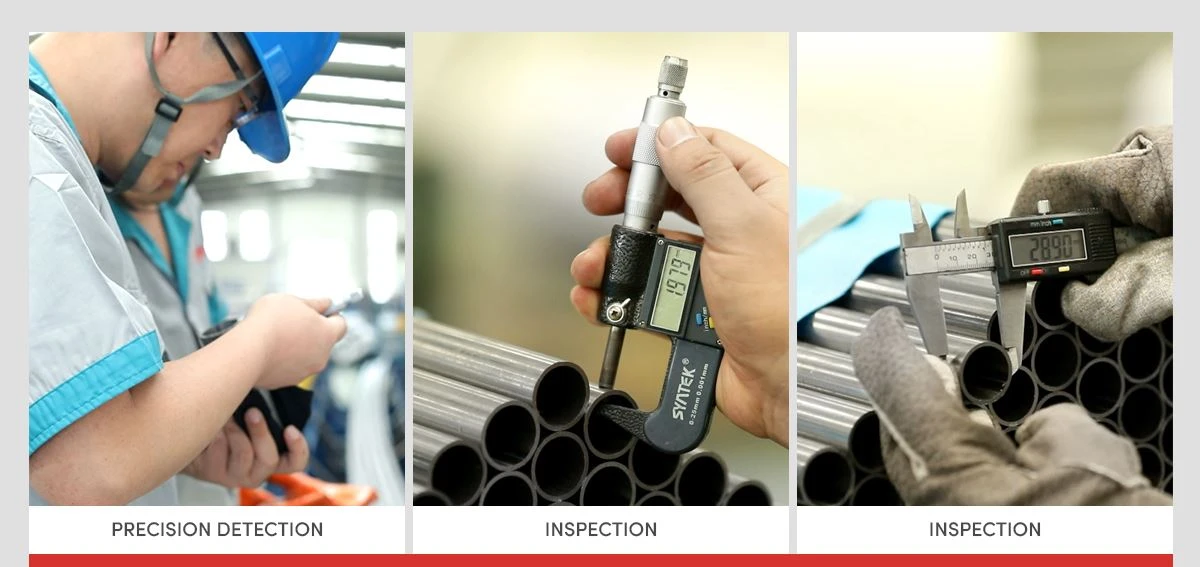

Testing Instruments
Process Flow

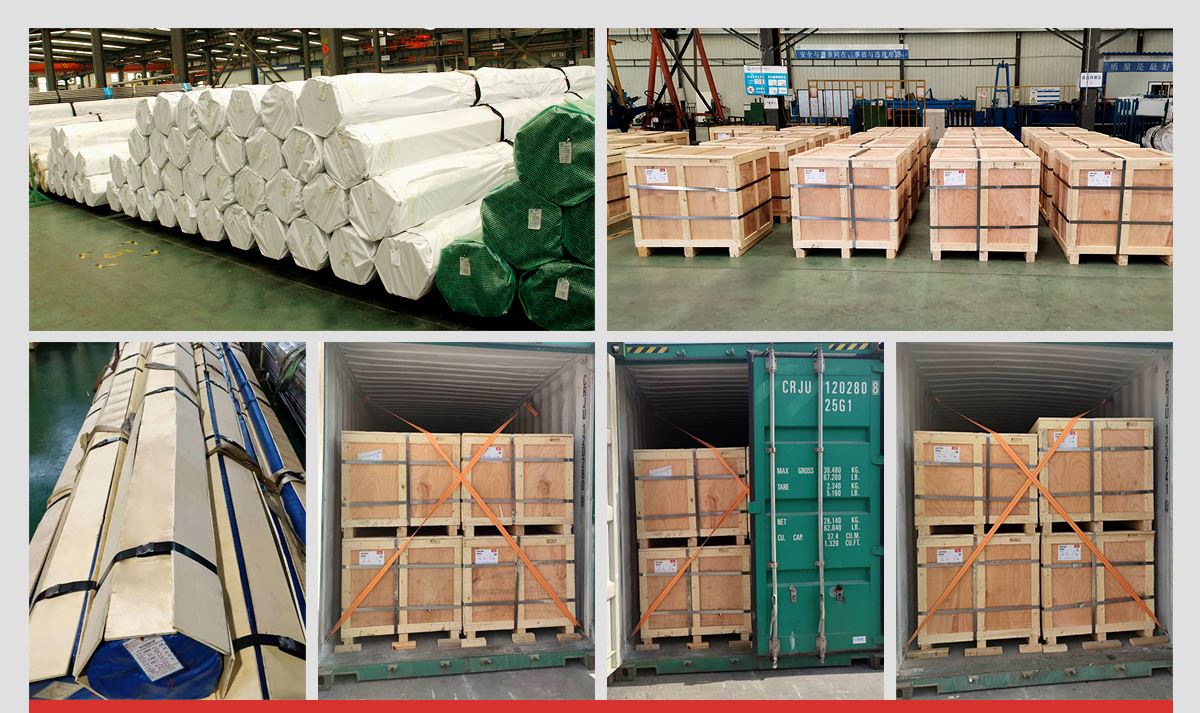

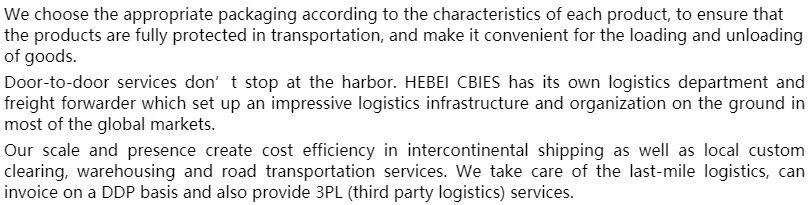

Packing and Delivery
Product grade and application:
A: Have good cold forming performance and is used to manufacture rims and spokes of rolling wheel
Grade: B330CL, B380CL, B420CL
The thickness of the product is between 1.0mm and 14.0mm.
B: It is used for manufacturing automotive girders and beams.
Grade: B320L, B420L, B510L, B510DL, B550L
The thickness of the product is between 1.0mm and 12.0mm.
C: It is used for manufacturing automotive driveshaft tube
Grade: B440QZR, B480QZR
The thickness of the product is between 1.0mm and 18.0mm.
FAQ
1. What products do your factory mainly produce?
We are dedicated to producing high-quality ERW steel tubes, Stainless Steel Tube 304, cold drawing precision tubes, which are widely used in automobile parts(shock absorber, steering gear,anti-crash beams, strut bar , structural tubes).
2. What is your company's corporate culture?
Quality, Service, Honesty and Speciality are our core values, which have formed the soul and DNA of HEBEI CBIES. Every member of the company believes that the unified values will bring efficient work and be helpful to make the customers greater.
3. Delivery time?
We have ready stock for most of the material grades in our warehouse. If the material doesn't have stock, the delivery lead time is about 5-30 days after receiving your prepayment or firm order.
4. Can you provide a sample for our testing before confirming the order?
Yes. We can provide the sample to you for approval before you place an order with us. A free sample is available if we have stock.
5. What’s your MOQ?
Our MOQ is 5MT. If the stock is available, the MOQ is not required.
6. How can I get a sample for a quality check?
After the quotation, if needed, you can ask for samples to check quality. We are willing to provide with sample for quality and function testing.
