How do car door impact beams protect passengers in a T - bone crash?
T-bone crashes, also known as side-impact collisions, are among the most dangerous types of car accidents. In a T-bone crash, the front of one vehicle strikes the side of another vehicle, creating a high risk of severe injury or even death to the passengers in the impacted vehicle. This is where car door impact beams play a crucial role. As a car door impact beam supplier, I am well - versed in the science and engineering behind these safety features and how they protect passengers in T - bone crashes.
The Mechanics of a T - bone Crash
Before delving into how car door impact beams protect passengers, it's essential to understand the mechanics of a T - bone crash. When a vehicle is struck on the side, the impact force is concentrated on a relatively small area of the car. Unlike a frontal or rear - end collision, where the vehicle's crumple zones can absorb and dissipate energy over a larger area, the side of a car has limited space for energy absorption. The force from the colliding vehicle can quickly penetrate the car's interior, directly endangering the passengers.
How Car Door Impact Beams Work
Car door impact beams are designed to counteract the forces generated in a T - bone crash. These beams are typically made of high - strength steel, aluminum, or composite materials. They are installed horizontally within the doors of a vehicle, running from the front to the rear of the door frame.
Energy Absorption
One of the primary functions of car door impact beams is to absorb and distribute the energy from a side impact. When a T - bone crash occurs, the impact beam acts as a buffer between the colliding vehicle and the passengers. It deforms in a controlled manner, converting the kinetic energy of the impact into mechanical energy as it bends and crumples. This deformation process slows down the rate at which the force is transferred to the interior of the car, reducing the risk of injury to the passengers.
For example, high - strength steel impact beams are engineered to have a specific yield strength and ductility. When subjected to a side impact, the steel begins to yield and deform, absorbing a significant amount of energy. The design of the beam, including its shape and thickness, is carefully optimized to ensure that it deforms in a predictable way, maximizing energy absorption.
Structural Reinforcement
In addition to energy absorption, car door impact beams provide structural reinforcement to the vehicle's doors. They help maintain the integrity of the door frame during a side impact, preventing the door from collapsing inward and crushing the passengers. By adding stiffness to the door, the impact beam distributes the impact force over a larger area of the vehicle's body structure.
This structural reinforcement is particularly important in modern cars, which often have large, thin - walled doors for aesthetic and aerodynamic reasons. Without the reinforcement provided by the impact beam, these doors would be more susceptible to deformation and intrusion in a T - bone crash.
The Importance of Quality in Car Door Impact Beams
As a car door impact beam supplier, I understand the importance of quality in these safety components. A poorly designed or manufactured impact beam may not perform as expected in a T - bone crash, putting passengers at risk.
Material Selection
The choice of material for car door impact beams is critical. High - strength steel is a popular choice due to its excellent strength - to - weight ratio and cost - effectiveness. However, the quality of the steel can vary significantly. We source our steel from reputable suppliers and subject it to rigorous quality control tests to ensure that it meets the required standards.
Aluminum and composite materials are also used in some high - end vehicles. These materials offer advantages such as reduced weight, which can improve fuel efficiency. However, they require careful engineering to ensure that they provide the same level of protection as steel impact beams.
Manufacturing Processes
The manufacturing process of car door impact beams also plays a crucial role in their performance. We use advanced manufacturing techniques such as hot stamping and roll forming to produce impact beams with precise dimensions and consistent quality. Hot stamping, for example, allows us to create impact beams with high strength and complex shapes, which are optimized for energy absorption and structural reinforcement.
Case Studies and Research
Numerous studies have demonstrated the effectiveness of car door impact beams in protecting passengers in T - bone crashes. For instance, research conducted by the Insurance Institute for Highway Safety (IIHS) has shown that vehicles equipped with well - designed impact beams have significantly lower rates of serious injury in side - impact collisions.
In one case study, a vehicle without proper side - impact protection was involved in a T - bone crash. The door collapsed inward, causing severe injuries to the passengers. In contrast, a similar vehicle with high - quality car door impact beams was involved in a similar crash. The impact beams absorbed and distributed the energy of the impact, preventing the door from collapsing and protecting the passengers from serious harm.
Our Products and Solutions

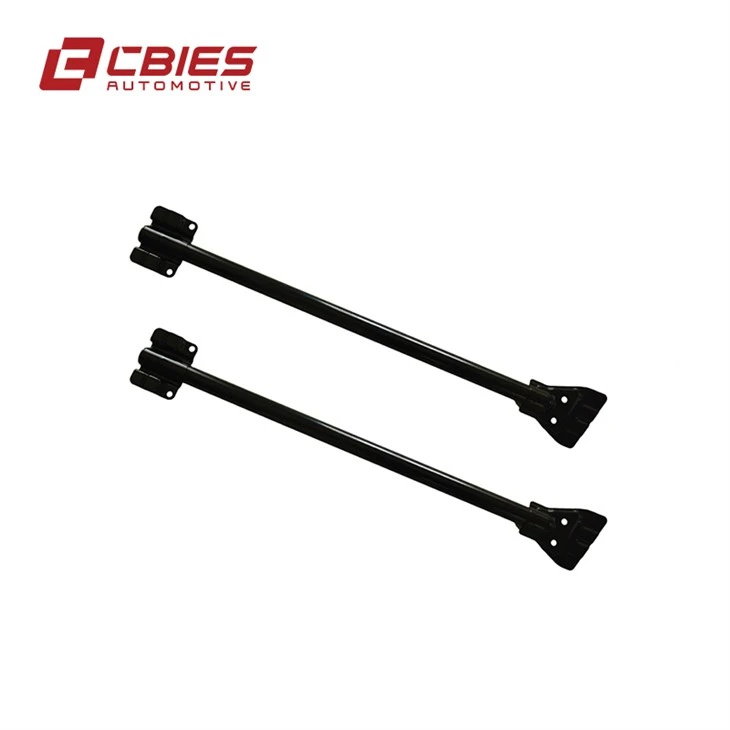

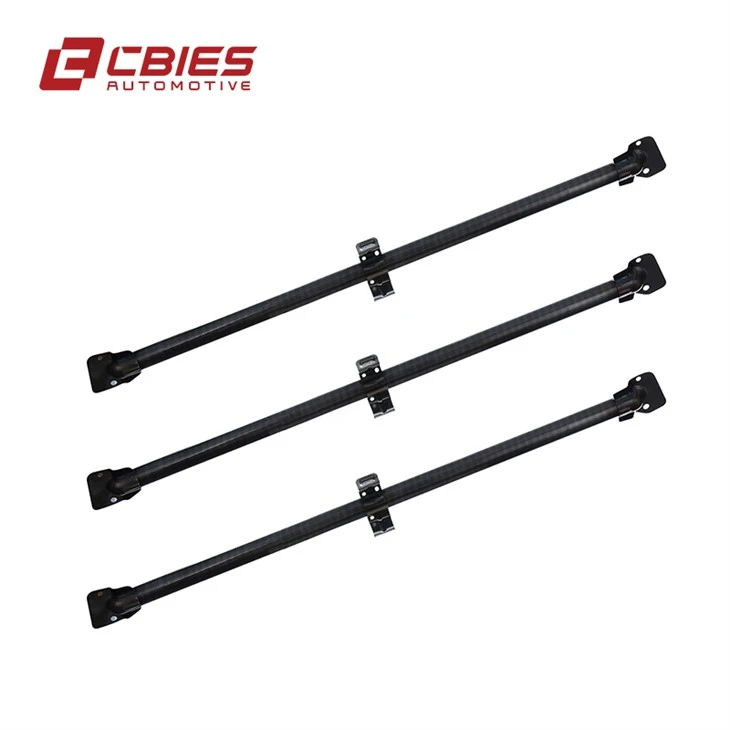

As a leading car door impact beam supplier, we offer a wide range of products to meet the needs of different vehicle manufacturers. Our Side Impact Door Beams are available in various sizes and materials, and can be customized to fit the specific requirements of each vehicle model.
We also provide comprehensive engineering support to our customers. Our team of experts can work with vehicle manufacturers from the design stage to ensure that the impact beams are integrated seamlessly into the vehicle's safety system. We use advanced computer - aided design (CAD) and finite element analysis (FEA) tools to simulate the performance of the impact beams in different crash scenarios, allowing us to optimize their design for maximum protection.
Contact Us for Your Impact Beam Needs
If you are a vehicle manufacturer or part of an automotive supply chain looking for high - quality car door impact beams, we invite you to contact us for a consultation. Our team is ready to discuss your specific requirements and provide you with the best solutions for your safety needs. Whether you need standard impact beams or customized designs, we have the expertise and resources to meet your expectations.
In conclusion, car door impact beams are essential safety features that play a vital role in protecting passengers in T - bone crashes. As a supplier, we are committed to providing high - quality impact beams that meet the most stringent safety standards. By investing in our products, vehicle manufacturers can enhance the safety of their vehicles and provide peace of mind to their customers.
References
- Insurance Institute for Highway Safety (IIHS). Side - Impact Crash Testing and Ratings.
- Society of Automotive Engineers (SAE). Standards for Vehicle Safety Components.
- International Organization for Standardization (ISO). Standards for Automotive Safety and Quality.
